RCPico
Raspbery Pi Pico W RC car
WIFI RC Car controller using RPI Pico W

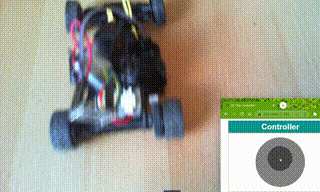

The car can be controlled using an web-browser on a mobilephone or PC using WIFI

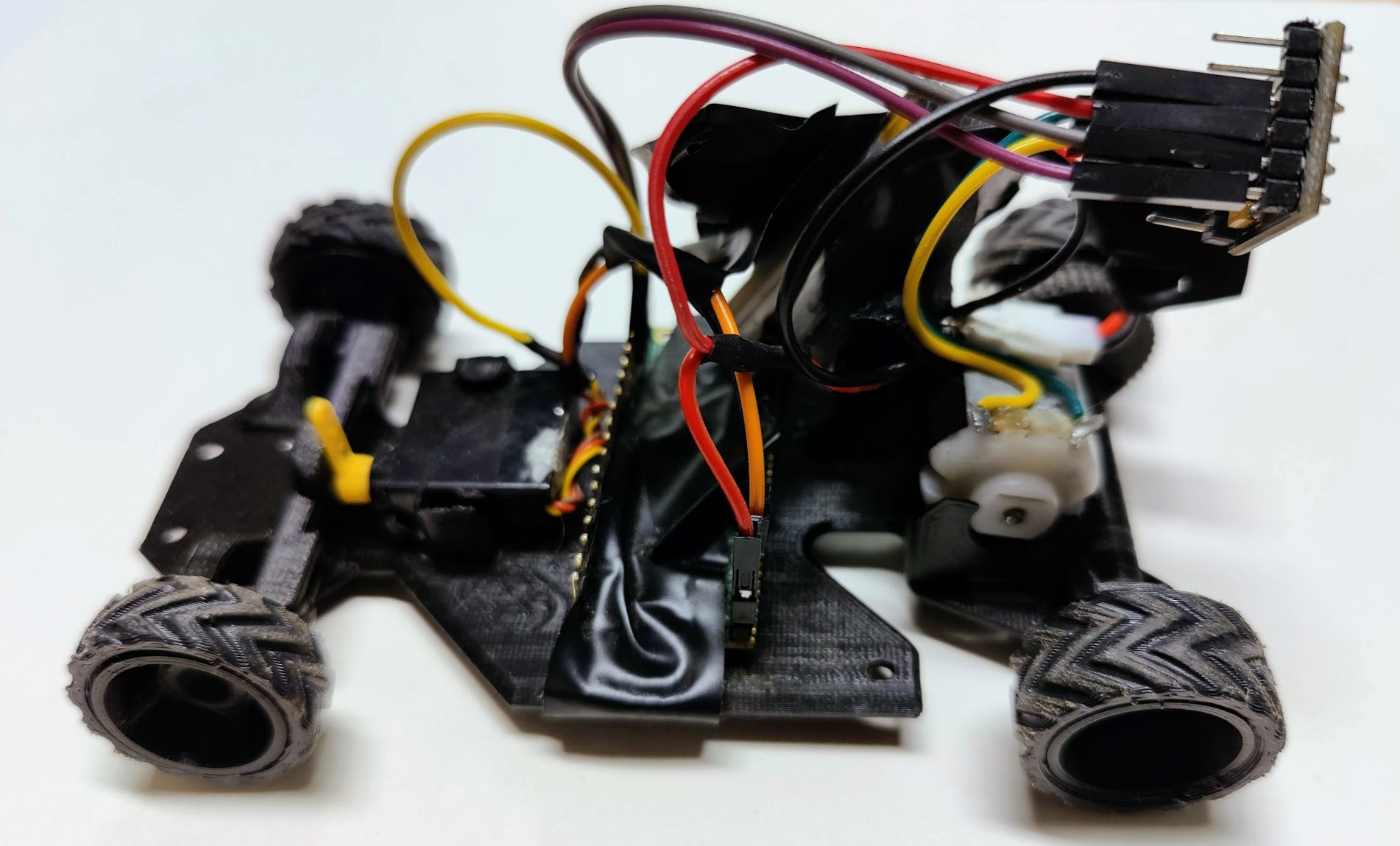

There is no need for a PCB, just connect the hardware compenents using wires acording to the schematics

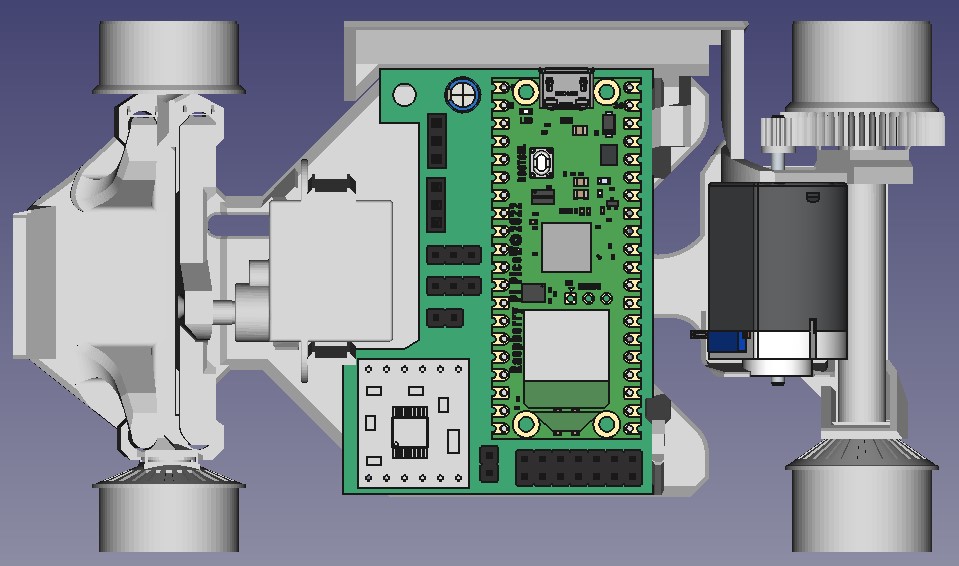

To cleanup the wires the project includes a PCB-boarddesign for the 3D printed car Gamma 2.0
Project Content
KicadV7
PCB Design files for Kicadv7
More Hardware info is available in the README
Software
The software is developed using MicroPython
on a Raspberry Pi Pico W
More Info in the README
Instalation
Firmware
Download RCPico.zip
Unzip RCPico.zip

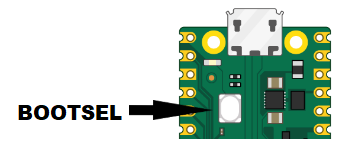

On the microcontroller, press the BOOTSEL button and hold it while you connect the USB cable to your computer
A new drive would appear
Copy the file RCPico.uf2 to the new drive
Conneting to the car
Scan the QRcode to connect to the car’s wifi-network
This conect you to the car-wifi with ssid = ‘GemmmaRC#01’ and password = ‘123456789’
Scann the QRcode to connect to the car’s controller/joystock
Open the web-page 192.168.4.1 and now you are ready :)
3dr Party resources
Hardware
For a harrdware list see the Bil of materials :)
Software compoenents
microdot - Micropython web framework
nipplejs - JoyStick JavaScript
Software tools
picotool used to grenerate the firmware-file (RCPico.u2f)
(picotool save -a -f RCPPico.uf2)
License
This work is licensed under a Creative Commons Attribution 4.0 International License.
